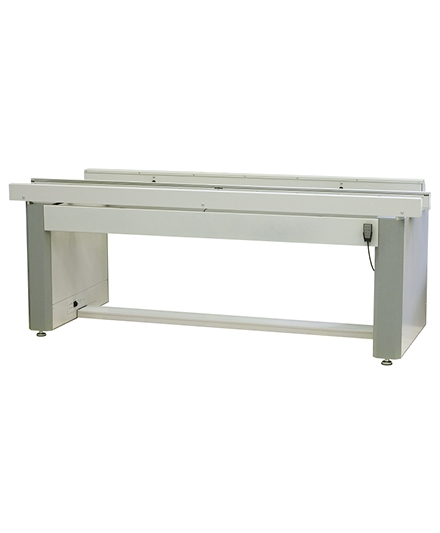

Heavy Load Conveyor
The Heavy load conveyor is based on the standard transport/buff er conveyor with the following main diff erences: reinforced rail structure, rail suspension, and belt driving mechanism. Each section of the conveyor has its own powerful DC motor, that drives the belt on both sides and provides smooth, reliable transportation of PCBs through an electronics assembly line.
Conveyor width adjustment is motorized as standard. Belt driving motors and cables are covered with sheet metal, giving a clean appearance to the unit. The conveyor frame is used for housing the PLC and associated control electronics.
Order codes:
Conveyor 1000mm, K-017-0271
Conveyor 1500mm, K-017-0272
Conveyor 2000mm, K-017-0273
Standard features
- PLC controlled
- SMEMA interface
- Stable and ridgid construction
- Buffering conveyor sections
- Motorized width adjustment
- Adjustable transport speed
Options
- Automatic width adjustment
- Auto width control unit
- See order guide for more options
- Board transport level: 940 ± 30 mm (37 ± 1.2”)
- Board length: 80 - 730 mm (3.15 - 28.7”)
- Board width: 50 - 621 mm (2 - 24.5”)
- Min. board thickness: 0.8 mm (0.03”)
- Max. board weight: 15 kg (33 lbs)
- Board edge clearance: 4 mm (0.16”)
- Top/bottom clearance: 25/20 mm (1.0/0.8”)
- Max. board warpage width: 0.5%
- Voltage: 100 - 240 VAC, 50/60 Hz
- Max. power consumption: 0.75 kWh
- SMEMA Interface
